12 -15 May 2006,   Friday - Monday
RAASAY
Tour:   Self.
Weather:  Perfect sunshine, Saturday.   Cloudy, but mostly dry on Sunday.

Summary of Geology:     (see also my field trips on Skye and Raasay of 23-30 August 2006)

A wide variety of rocks of many geological ages can be found on Raasay including:

Lewisian Gneiss:  - the oldest rocks found in the British Isles, ~ 3000-2000 Ma; extensive exposures in the far north of the island.

Torridonian Sandstone:   - the oldest sedimentary rocks in the British Isles, ~1000-800 Ma, principally found in north-western parts of the island.  Red-brown fluvial feldspathic sandstones (arkoses), and conglomerates with frequent clasts eroded from the Lewisian.  They were very slightly metamorphosed during the Caledonian Orogeny, but retain fully their sedimentary structures.

Triassic sediments: -  ~220 Ma, found in small areas in the south of the island, at the Rhuba na' Leac, and also in small patches which appear to overlie the dolerite sill at Oskaig.   They consist of bright red sandstones and conglomerates, distinguishable from the older Torridonian in that the Triassic beds are less hard and that they can, and do, contain frequent clasts of Cambro-Ordovician limestone (reacts with acid).

Jurassic sediments: - fossiliferous sandstones, limestones and shales, of lower and middle jurassic age, ~200 Ma, found widely, mostly in the south-east.  Also found are ironstones in chamositic oolitic limestone, which were mined briefly until just after the First World War.

Tertiary rocks: - ~60-50Ma, an extensive granophyre sill covers a wide area in the south of the island. Granophyre is a fine-grained porphyritic granite with intergrowths of quartz and feldspar. The granophyre sill is displaced by a fault which traverses the island from a point half-a-mile west of Eyre Point north-westwards to near Oskaig.   The flat cap of Dun Caan, composed of basalt, is a detached part of the Skye lava field.

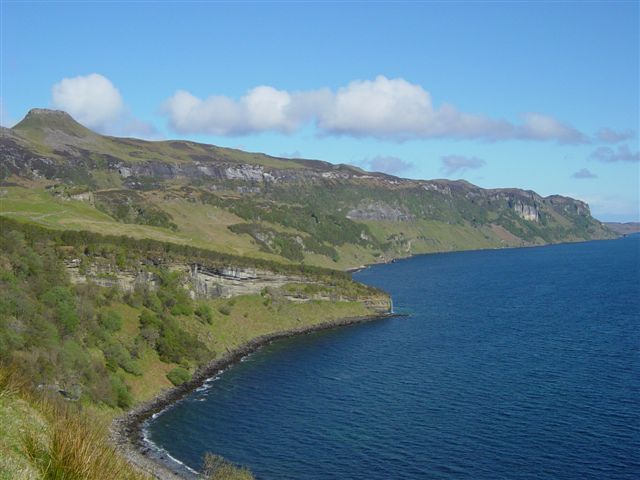

  The "classic" Jurassic east coast view, looking north.  Hallaig Bay (the fossil shore) in foreground, is on lowest Lias. Limestones and sandstones of the Broadford Beds form the near promontory; beyond are sandstones of the Bearreraig Sandstone, followed upwards by oolites of the Great Estuarine Group (Middle Jurassic).  The flat topped summit of Dun Caan is an outlier of the Skye lava field, of Tertiary age.

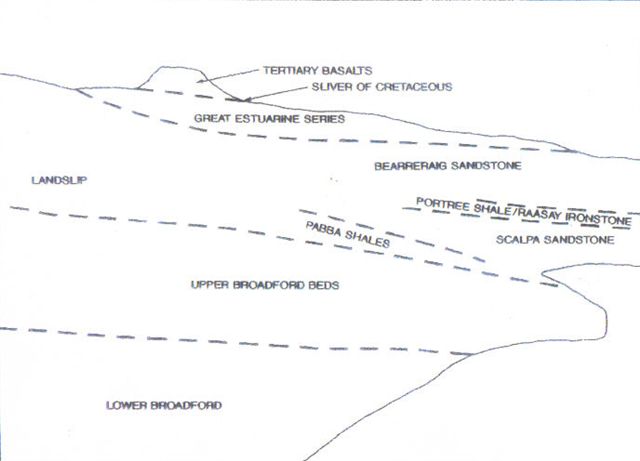

This diagram identifies the beds in the photograph above in greater detail.

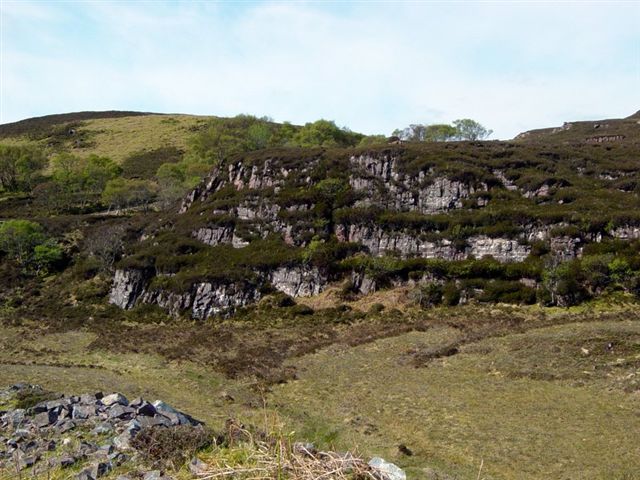

The Torridonian Sandstone - almost unmetamorphosed, bedded sandstone underlying the north west corner of the island.

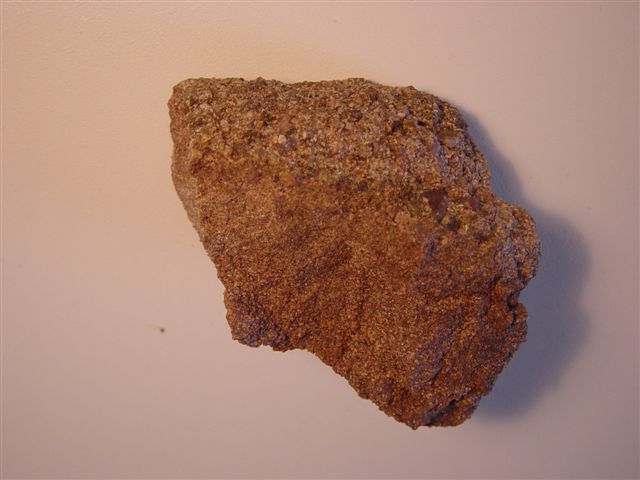

Torridonian red sandstone.

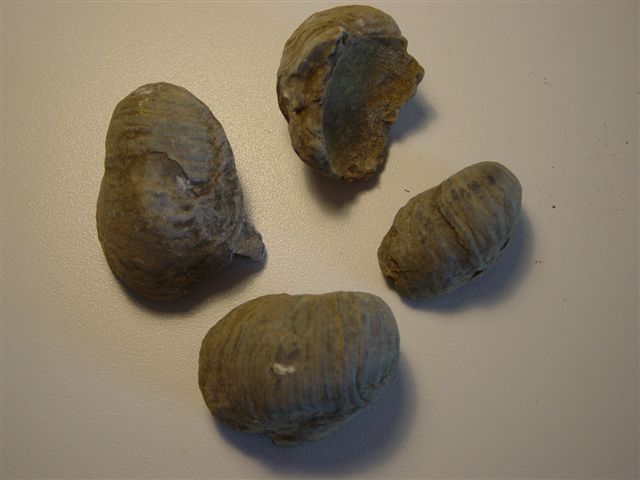

Gryphaea, fossil oysters, the "Devil's Toenail", from the Lias (Lower Jurassic) of Hallaig Bay.

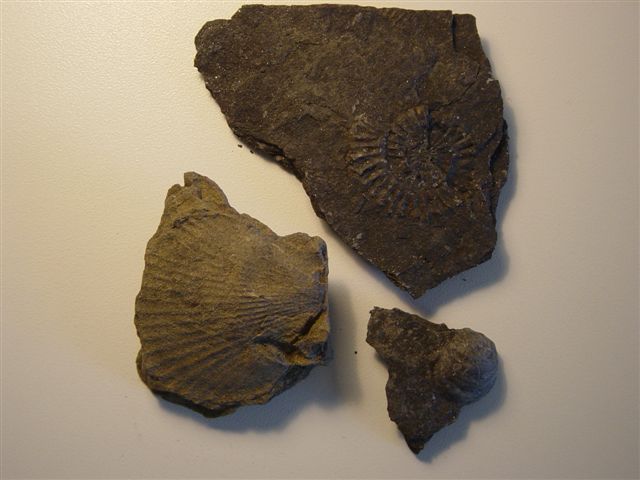

Fossils from the Lower Jurassic Pabba Shales of the Allt Fearns burn - about 100 metres north of the road. Fragments of ammonite (top),  brachiopod (bottom right) and pecten, the scallop (bottom left).

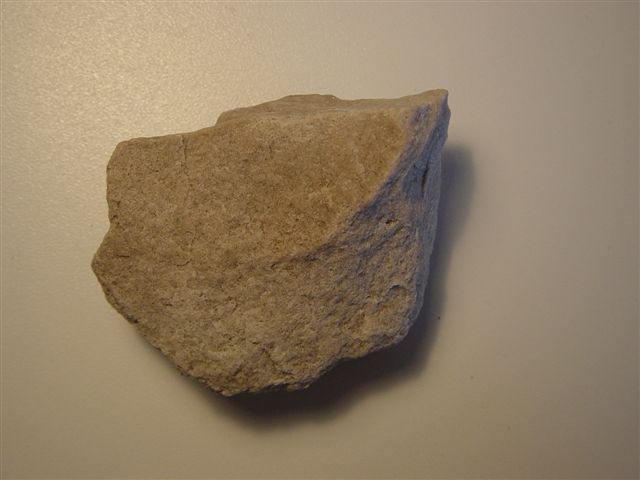

Fine-grained sandstone from the sliver of Cretaceous rock below the summit of Dun Caan.

(sampled and photographed, May 2007)

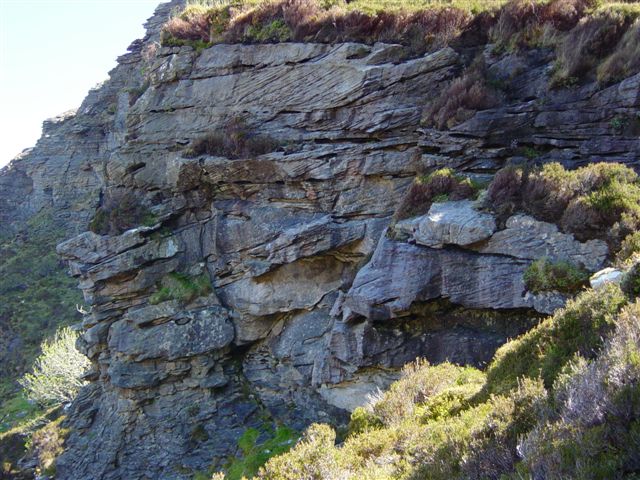

Strongly cross-bedded oolitic limestone and sandstone of the Inferior and Great Oolite (Middle Jurassic) near the top of Beinn na' Leac.
